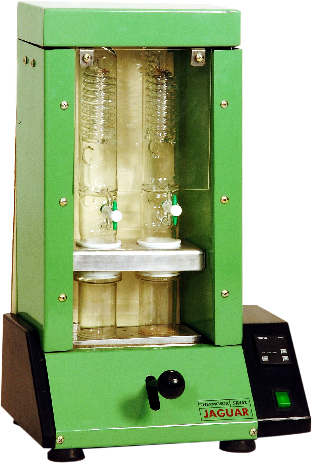

Thermosox Solvent Extraction Unit

SICIL brings to you the state of the art indigenously developed and manufactured range of analytical equipment applied in Agricultural, Environmental, Beverages, Food & Feed and Pharmaceutical Industries. With over a decade of manufac- turing experience and more than 100 customer installa- tions all across India in Academics, Research and Industry, we are one of few established companies manufacturing this product range.

Our ever increasing goals are set by our continuous pursuit of excellence in innovation, manufacturing and quality which always motivates us to Understanding your Laboratory needs... and eventually catering to these need.


Features

  • Built-in cartridge heater made of stainless steel placed inside the aluminum heating block, to ensure uniform heating throughout block.
  • Digital Temperature controller.
  • Optimized cooling circuit.
  • Adjustable Thimble holders.
  • Body Panel made of Mild steel (1.6 thk) with Powder coating.

Benefits

  • Upto 85% saving on Time and solvent compared to traditional Soxhlet method.
  • Compact and ergonomic design.
  • Energy saving and easy to operate.
  • Choice of 2, 4 and 6 condenser designs forming the range.

Applications

  • Crude fat in meat and animal fodder, food, pharmaceuticals.
  • Soluble minerals in textile fibers and paper pulp, petrochemicals.
  • Animal tissues, soils and sediments.

Technical Data

PARAMETER TECHNICAL DATA
Range 0 – 100%
Solvent Recovery 65 – 70%
Solvent volume 60 – 100 ml typical
Temperature controller Auto tune PID Micro controller
Temperature range Ambient to 200˚C
Extraction timer 1 – 9999 Minutes ( Built – in)
Extraction thimble Nitrocellulose ( Dia 25 x 80 mm)
Speed Extraction 30 - 60 min depending on sample type
Reproducibility S± 1% relative or better
Electrical requirement 230 V , 50 Hz single phase AC

Current Rating Data

Cat No. SK402 SK404 SK406
Current rating in amps 8 10 10

Order Information

Cat No. SK402 SK404 SK406
Features 2 Samples at a time 4 Samples at a time 6 Samples at a time
