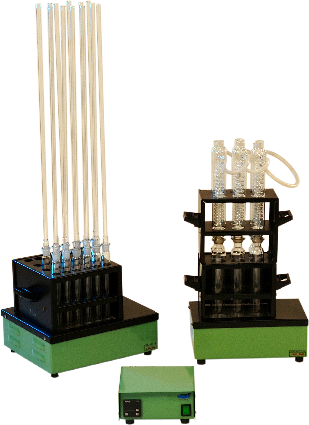

Thermokjel Block Digestion Unit for COD Analysis

SICIL brings to you the state of the art indigenously developed and manufactured range of analytical equipment applied in Agricultural, Environmental, Beverages, Food & Feed and Pharmaceutical Industries. With over a decade of manufac- turing experience and more than 100 customer installa- tions all across India in Academics, Research and Industry, we are one of few established companies manufacturing this product range.

Our ever increasing goals are set by our continuous pursuit of excellence in innovation, manufacturing and quality which always motivates us to Understanding your Laboratory needs... and eventually catering to these needs…


Features

  • Homogenous and fast digestion of samples.
  • Custom-built high-density cartridge heater made of stainless steel.
  • Special aluminum block that ensures homogenous heating throughout.
  • Optimum clearance between digestion tubes and walls of the wells.
  • Sufficient layers of ceramic fiber bound with asbestos sheet used for insulation of the block.
  • Precise digital PID temperature controller with auto-tuning facility.
  • Auto-tuner optimizes the value of PID parameters to maintain precise temperature accuracy.
  • Timer can be provided as option. Timer ensures automatic cutoff of unit after programmed digestion time is complete.
  • The digestion tubes made of Borosilicate glass are provided with ball joint in case of water- cooled condenser and ground joint in case of air- cooled condenser.
  • Highly efficient condensers to facilitate good reflux.
  • Simultaneous handling of 12, 24, 48 samples in 100 ml tubes and 6 ,12, 24 samples in 250 ml tubes for both air- cooled and water cooled reflux systems (as per ordering information).
  • Specially designed stainless steel digestion tube holder with SS tube holder stand.
  • Heat deflector plate made of SS304 grade with 1.2 mm thickness.
  • Can also be used for Digestion procedures in kjeldahl and trace metal analysis with suitable accessories.
  • Body Panel made of Mild steel (1.6 thk ) Powder coated with SS top cover.

Technical Data

PARAMETER TECHNICAL DATA
Digestion time 2 hours typically
Temperature
  • Range – 40 – 450 °C. Accuracy - ± 1.0°C
  • Controller - Digital PID controller with ‘J’ type thermocouple sensor.
  • Setting - Sensitive touch Keys built in PID controller4.
  • Indication - Digital LED display built in PID controller
  • Time Setting Programmable between 1 – 9999 minutes. can be provided as option
    Electrical requirement 220 V ± 10%, 50 Hz Single phase AC

    Current Rating Data

    Air-Cooled Reflux Systems TK 312 DC TK 320 DC TK 340 DC TK 506 DC TK 512 DC TK 520 DC
    Current rating in amps 5 10 16 8 16 20
    Water-Cooled Reflux Systems - - - TK 506 DC TK 512 DC TK 520 DC
    Current rating in amps - - - 8 16 20

    Order Information

    Air-Cooled Reflux Systems 6 Places 12 Places 20 Places 40 Places
    Micro (100 ml) - TK 312 AC TK 320 AC TK 340 AC
    Macro (250 ml) TK 506 AC TK 512 AC TK 520 AC -
    Water-Cooled Reflux Systems 6 Places 12 Places 20 Places 40 Places
    Macro (250 ml) TK 506 WC TK 512 WC TK 520 WC -
