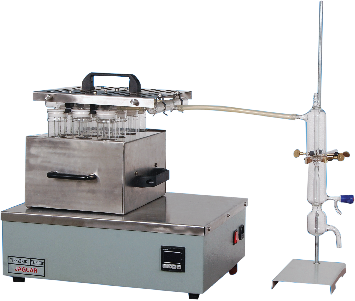

Thermokjel Block Digestion Unit for Kjeldahl Analysis

SICIL brings to you the state of the art indigenously developed and manufactured range of analytical equipment applied in Agricultural, Environmental, Beverages, Food & Feed and Pharmaceutical Industries. With over a decade of manufac- turing experience and more than 100 customer installa- tions all across India in Academics, Research and Industry, we are one of few established companies manufacturing this product range.

Our ever increasing goals are set by our continuous pursuit of excellence in innovation, manufacturing and quality which always motivates us to Understanding your Laboratory needs... and eventually catering to these needs.


Features

  • Homogenous and fast digestion of samples.
  • Custom-built high-density cartridge heater made of stainless steel.
  • Special aluminum block that ensures homogenous heating throughout.
  • Optimum clearance between digestion tubes and walls of the wells.
  • Sufficient layers of ceramic fiber bound with asbestos sheet used for insulation of the block.
  • Precise built – in digital PID temperature controller with auto-tuning facility.
  • Auto-tuner optimizes the value of PID parameters to maintain precise temperature accuracy.
  • Timer can be provided as option. Timer ensures automatic cutoff of unit after programmed digestion time is complete.
  • Digestion Tubes made of Borosilicate glass.
  • Specially designed leak proof exhaust manifold assembly made of Borosilicate glass with manifold rack. Provided along with chemical & heat resistant Teflon covers for the digestion tubes.
  • Specially designed stainless steel digestion tube holder with SS tube holder stand.
  • Specially designed vapor aspirator pump made of borosilicate glass with Teflon drain valve, supplied with stand.
  • Vapor aspirator tubes made of EPDM monomer.
  • Heat deflector plate made of SS304 grade with 1.2 mm thickness.
  • Available with acid fume neutralizer SCRUBBER ES 50 as an optional accessory.
  • Body Panel made of Mild steel (1.6 thk ) Powder coated with SS top cover.
  • >

Technical Data

PARAMETER TECHNICAL DATA
Sample size Up to 5 gm / 15 ml relevant to nitrogen content
Digestion time 30 – 45 minutes typical.
Temperature
  • Range – 40 – 450 °C. Accuracy - ± 1.0°C
  • Controller - Digital PID controller with ‘J’ type thermocouple sensor
  • Setting - Sensitive touch Keys built in PID controller4
  • Indication - Digital LED display built in PID controller
  • Time Setting Programmable between 1 – 9999 minutes. can be provided as option
    Electrical requirement 230 V, 50 Hz Single phase AC

    Current Rating Data

    Parameter TK 312 DC TK 320 DC TK 340 DC TK 506 DC TK 512 DC TK 520 DC
    Current rating in amps 5 10 16 8 16 20

    Order Information

    PARAMETER TK 312 DC TK 312 DC TK 312 DC TK 312 DC TK 312 DC TK 312 DC
    No. of Samples 12 20 40 6 12 20
    Tube Capacity in ml 100 100 100 250 250 250
    Tube dimension in mm 26 x 300 26 x 300 26 x 300 42 x 300 42 x 300 42 x 300
    Block Dimensions (WxDxH) in mm 380 x 200 x 140 480 x 320 x 140 520 x 420 x 140 480 x 230 x 140 430 x 360 x 140 600 x 300 x 140
    Block Weight in Kg 12 16 24 15 30 45
